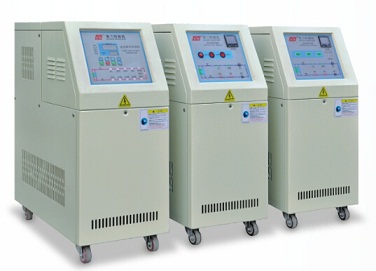

180℃高溫水溫機特點：
|
特 點 FEATURES |
|
|
|
|
|
|
|
奧蘭特180℃高溫水溫機有發熱管防干燒系統，高壓防暴系統，采用進口富士接觸器，臺灣進口元新高溫水泵。 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.管路防爆裝置 |
|
|
|
|
|
|
|
Explosion/proof equipment for pipelines |
|
|
|
|
|
|
|
2.吹氣回水功能（選購） |
|
|
||||
|
Air blowing and return water function（optional) |
|
|
||||
|
3.回水溫度顯示表 |
|
|
||||
|
Thermometer for return water |
|
|
||||
|
4.開機自動排氣功能 |
|
|
||||
|
Automatic air-exhausting function after startup |
|
|
||||
|
5.加熱功率切換功能 |
|
|
||||
|
Switchover of heating power |
|
|
||||
|
6.熱水BY-PASS泄壓回路 |
|
|
||||
|
BY-PASS pressure release loop for hot water |
|
|
||||
|
7.多點溫度控制機組可訂作 |
|
|
||||
|
Customizable multi-point temperature control unit |
|
|
||||
|
8.水泵馬力和加熱功率可訂作 |
|
|
||||
|
Customizable horsepower and heating power of oil pump |
|
|
||||
|
9.即實時冷卻關機功能(選購) |
|
|
||||
|
Instant cooling return oil shut-down function (optional) |
|
|||||
|
10.控制方式: 采用進口微電腦或(選購)PLC控制 |
||||||
|
Control mode: imported microcomputer or PLC (optional) |
||||||
|
11.溫度控制范圍: 進水溫+30℃→180℃ |
||||||
|
Range of temperature control: +30℃→180℃ for incoming water |
||||||
|
12.隔離式電器控制箱. 延長電器使用年限 |
||||||
|
Isolated electric box for longer services lives of electric appliances |
||||||
|
13.RS485通訊功能, 實現自動化管理.(選購) |
||||||
|
RS485 communication function for automated management (optional) |
||||||
|
14.304不銹鋼一體管路,減少管阻及銹垢 |
||||||
|
304 stainless steel integrated pipelines for less pipe resistance and rust |
||||||
|
15.電器采用OMRON. FUJI. TE. LG.MOELLR.ABB.WEST |
||||||
|
Brands OMRON, FUJI, TE and LG.MOELLER.ABB and WEST for electric appliances |
||||||
|
16 高壓防爆強制冷卻,泄壓 |
|
|
||||
|
High-pressure explosion-proof forced cooling, relief-pressure |
||||||
|
17.安全保護完善,故障顯示, 維修.保養無需專業人員 |
||||||
|
Perfect safety protection, fault display, easy repair and maintenance even without professionals |
||||||
|
|
||||||
|
規格SPEIFICATIONS |
|
|
||||
|
|
|
|
|
|
|
|
|
模型Model |
單位UNIT |
TWH-10 |
TWH-20 |
TWH-30 |
TWH-40 |
TWH-50 |
|
溫控范圍 Control range |
℃ |
180℃ |
||||
|
溫控精度Temp.control accuracy |
℃ |
PID±1℃ |
||||
|
電源 Power supply |
|
AC 3φ380V50HZ（or other)或其它 |
||||
|
傳熱媒體Heat.transfer medium |
|
水 Water |
||||
|
冷卻方式 Cooling method |
|
間接冷卻INDIRECT C00LING |
||||
|
加熱能量Heating capacity |
KW |
9 |
12 |
18 |
24 |
24/36 |
|
泵浦馬力（功率）Horsepower of Pump |
HP/KW |
0.5/0.37 |
0.5/0.37 |
1/0.75 |
1/0.75 |
2/1.5 |
|
泵浦工作流量Working flow of pump |
L/MIN |
35 |
35 |
100 |
100 |
180 |
|
泵浦工作壓力Working pressure of pump |
KG/C㎡ |
2 |
2 |
2.2 |
2.2 |
2.4 |
|
大電力消耗Maximum power consumption |
KW |
6.5 |
6.5 |
10 |
10 |
11 |
|
警報功能 Alarm function |
|
缺相/缺水/超溫/過載/反轉 |
||||
|
冷卻水配管Cooing water pipework |
INCH |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
|
循環水配管Circulating water pipework |
INCH |
3/8x4 |
3/8x4 |
3/8x4 |
1.2 |
1.2 |
|
外型尺寸External dimensions |
MM |
820x320x770 |
820x320x770 |
820x320x770 |
1200x500x1100 |
1200x500x1100 |
|
重量 Weighht |
KG |
122 |
126 |
132 |
|
|
|
以上規格如有變更，恕不另行通知，特殊規格及多機一體機型可定制。Special design upon request |
||||||
